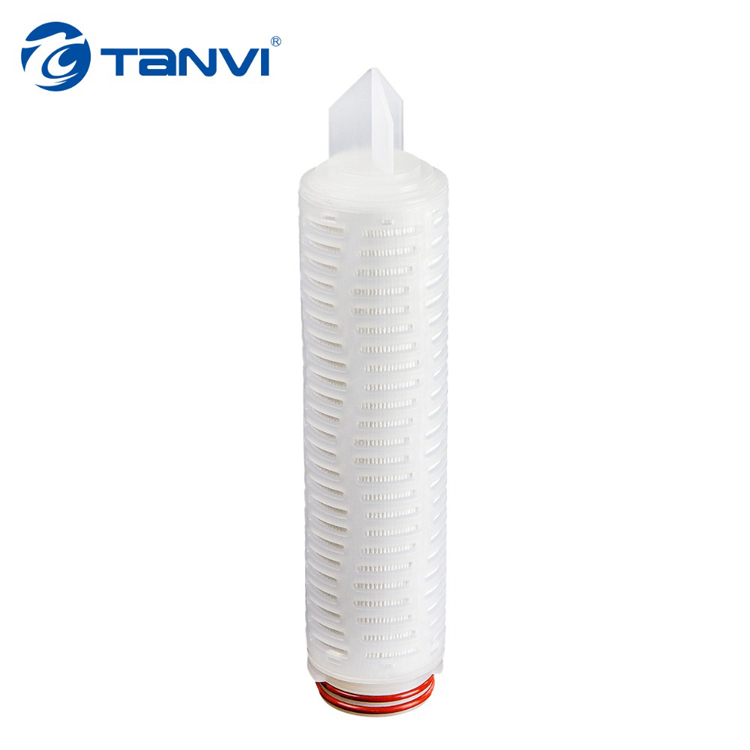

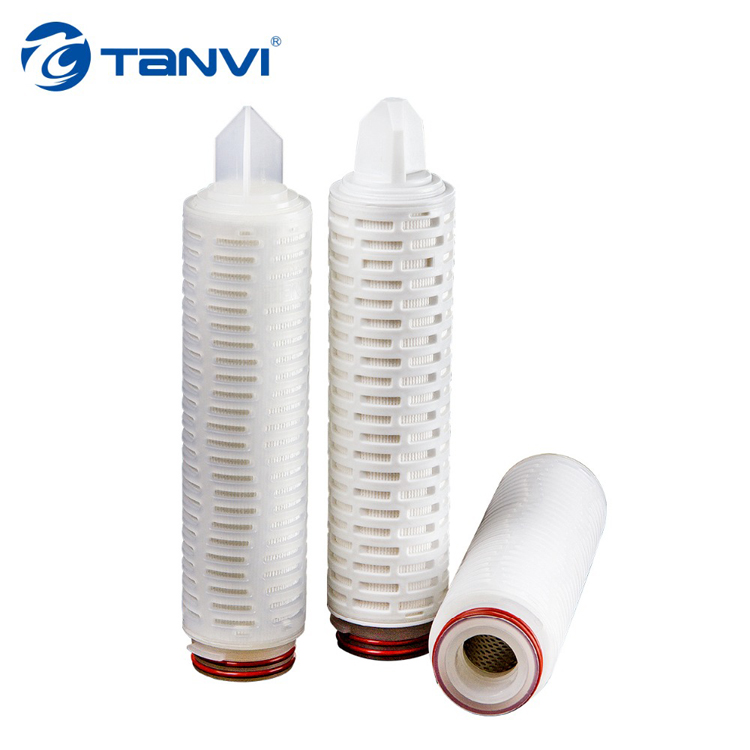

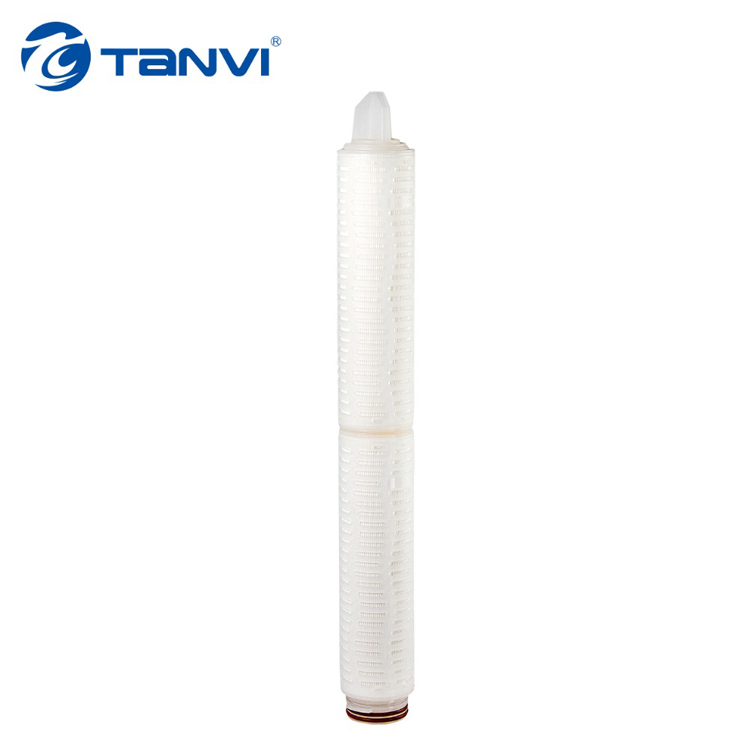

Positively Charged Nylon Filter Cartridge

PCN series nylon pleated filter cartridges are made of hydrophilic nylon membrane. A special feature of this membrane is that it carries a positive charge, which enhances the retention of the filter membrane and enables adsorption and interception of particles smaller than the filtration rating, such as endotoxins in water.

This series of filter cartridges features excellent chemical compatibility, high mechanical strength, low extractables and no fiber shedding. They are widely used for the filtration of alkaline solutions, weak acids and organic solvents.

Features and Benefits

It features strong hydrophilicity and is an excellent material for liquid sterilization filtration.

The filter element has high flow rate, low differential pressure, and each sterilization-grade unit undergoes integrity testing.

Each filter element is equipped with a unique code, ensuring traceability and easy identification.

High cleanliness, free of binders and resins.
Application

Sterilization and pyrogen removal filtration for antibiotic solutions.

Sterilization and pyrogen removal filtration for physiological saline, reagents and water for injection.

Sterilization and pyrogen removal filtration for injections such as large-volume infusions and small-volume injections.

Positively Charged Nylon Filter Cartridge

Product Structure Operating Conditions Biocompatibility Selection Table

Membrane Material	Charged hydrophilic nylon filtration membrane
Support Layer Material	PP
Out Cage Material	PP
Inner Support Material	PP
Connection inner liner	None/ Stainless Steel
O-ring	Silicone

Maximum Operating Temperature: 60℃ (△P≤0.10Mpa)
Maximum Operating Differential Pressure: Forward 4.2bar; Reverse 1.5bar (25℃)
PH Range: 1-14
Recommended Replacement Differential Pressure: ≥1.5bar (25℃)
Sterilization Cycle: 121℃ for 30 minutes, ≥15 times

Biocompatibility:

All components comply with USP Class VI plastic testing.

Endotoxin ≤ 0.25 EU/ml

Extractables ＜ 30 mg per 10" filter cartridge

Series	Material	Rating(μm）	Size	Connection	O-ring
TZPCN	Positively Charged Nylon	0.1	2.5"	226	Silicone
		0.22	5"	222	EPDM
		0.45	10"	215	Buna N
			20"	DOE	Viton
			30"		PTFE coating
			40"
